FNIRSI 1013D

FNIRSI 1013D

Price on request

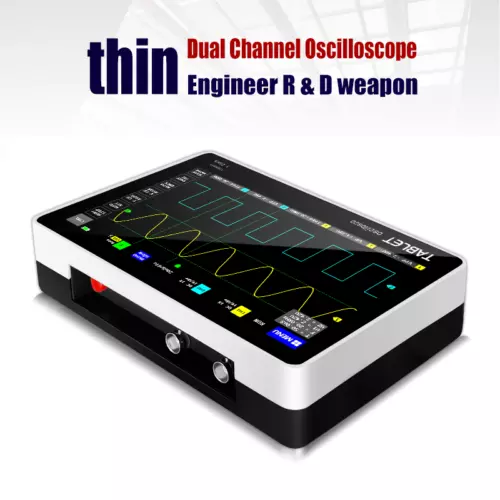

FNIRSI 1013D Tablet Dual Channel 100MHz 1GS/s Touchable Panel Oscilloscope

Specifications:

✦ Professional Designed: FNIRSI oscilloscope with 1 GSA/S sampling rate and 100 MHZ * 2 bandwidth. Fnirsi oscilloscope has a complete trigger function (single/normal/automatic), it can be used for both periodic analog signals and aperiodic digital signals.

✦ Highly Performance: 1 GB storage space can store up to 1000 screenshots 1000 sets of waveform data. Waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning and waveform zooming in, zooming out, moving, etc.

✦ Waveform Image Manager: Capacitive screen touch & gesture operation, cursor measurement, when manually reading amplitude-frequency parameters, and you can directly get the peak-to-peak value and frequency without reading the background scale unit and quantity.

✦ Easily Measuring: With 100MHz*2 analog bandwidth and 1GSa/s sampling rate, capture intricate signals with precision.

✦ Lissajous Graphic Display & FFT Viewing: Lissajous graphic display function can be used to compare the amplitude, frequency and phase of the two sets of signals. FFT viewing function can roughly estimation of the harmonic content of the signal.

Product Description

The FNIRSI-1013D is a dual-channel oscilloscope designed for R&D and maintenance, offering a 1GSa/s real-time sampling rate and 100MHz bandwidth per channel. It supports various trigger modes (single/normal/auto) and can handle up to 400V with built-in high-voltage protection. The 7-inch 800×480 touchscreen provides easy control with one-key AUTO function for quick waveform display.

It includes convenient features like cursor measurements, peak detection, and built-in 1GB storage for up to 1000 screenshots and waveforms. The oscilloscope also supports USB connectivity for data sharing, and its 6000mAh battery lasts up to 4 hours on a single charge, usable even while charging.

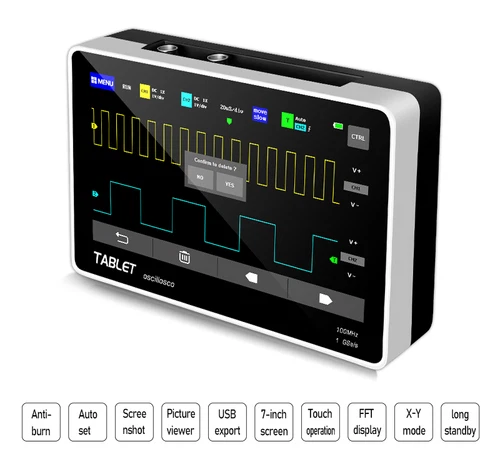

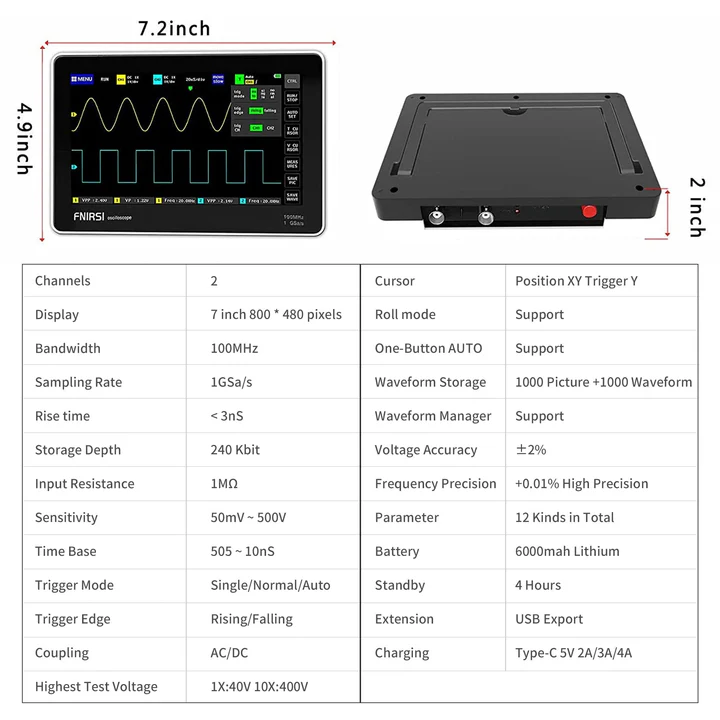

Features

2 Channels
Portable Handheld Tablet Oscilloscope
1GSa/s Sampling Rate (1X=5MHz,10X=100MHz)
100MHZ * 2analog bandwidth
7″ TFT LCD Touch Screen
Complete trigger function (single/normal/automatic).
One-button AUTO and adaptive trigger (25%, 50%, 75%).
Versatile usage for both periodic analog and aperiodic digital signals.
high-voltage protection module.
1X can measure 0~40V, 10X can measure 0~400V,100X can measure 0~4000V
Powerful Waveform Picture Manager.
One-key Screenshot and Saving.
Cursor measurement function.
Powerful Waveform Picture Manager.
Lissajous Graphic Display & FFT Viewing.
USB Picture Export
Ideal for both periodic analog and aperiodic digital signals.
6000mah battery, continuous usage for 4 hours

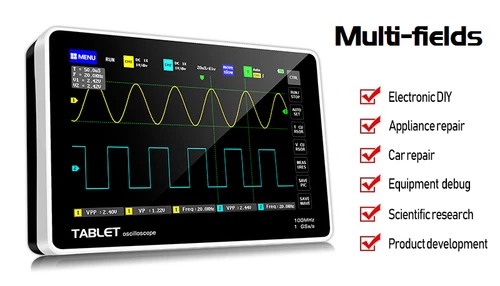

Targeting the maintenance industry and the research and development industry.

Unleash Precision with Advanced Features

The FNIRSI 1013D Plus 7 inch Touch Digital Tablet Oscilloscope is engineered for both professionals and hobbyists alike, taking your signal analysis to the next level. With a maximum bandwidth of 100 MHz and a real-time sampling rate of 1 GSa/s, this device excels in rendering highly accurate waveforms. Whether you’re probing digital circuits or diagnosing complex issues in electronics, the oscilloscope’s versatility shines through. The two-channel functionality allows simultaneous monitoring of multiple signals, ensuring that engineers can dissect wave interactions seamlessly. Experience exceptional precision, highlighted by its vertical sensitivity range of 50 mV/div to 500 V/div, catering to low-power signals as well as high-voltage scenarios with ease.

Portability Meets Power

Say goodbye to bulky equipment and hello to the FNIRSI 1013D Plus, designed with mobility in mind. Weighing in at just 2.5 lbs (1.13 kg) and powered by a robust 6000 mAh lithium battery, this handheld oscilloscope provides up to 95 minutes of continuous use on a single charge. Ideal for fieldwork, the device’s compact design makes it easy to transport, enabling technicians to perform measurements wherever their projects lead them. Not only does its battery life extend your working reach, but the 7 inch capacitive touch screen with an 800*480 resolution offers an intuitive interface, making operations straightforward and user-friendly. Conduct tests, tweak settings, or analyze outputs with unparalleled ease, maximizing productivity on the go.

Enhanced Functionalities for Every Application

Equipped with an array of features, the FNIRSI 1013D Plus provides a multitude of practical applications across various fields. The oscillations can be easily captured with a 0-40 V external trigger voltage, ensuring precision in time-sensitive measurements. Its trigger modes—Single, Normal, and Auto—enhance functionality for comprehensive analysis. Coupled with both AC and DC coupling modes, users can accurately assess both types of signals. The added ability to export pictures via USB further enriches the user experience, allowing for easy documentation of observations and data sharing. This oscilloscope proves invaluable in educational settings, research labs, and repair shops where prompt and accurate signal viewing is paramount.

Robust Design for Long-Lasting Performance

The FNIRSI 1013D Plus isn’t just about features; it’s built to endure. Crafted using high-quality materials, this digital oscilloscope is not only streamlined for efficiency but also designed to withstand regular use in demanding environments. The inclusion of an 8-bit ADC precision assures that readings maintain accuracy over time. Furthermore, with a storage depth of 240Kbit, you can capture extensive data sequences without compromising on performance. Its advanced touchscreen interface allows users to easily navigate through menus and settings using common touch gestures, amplifying your operational efficiency and comfort. This oscilloscope stands out as an essential tool for those looking to elevate their electronics projects while ensuring reliable and quality performance.
