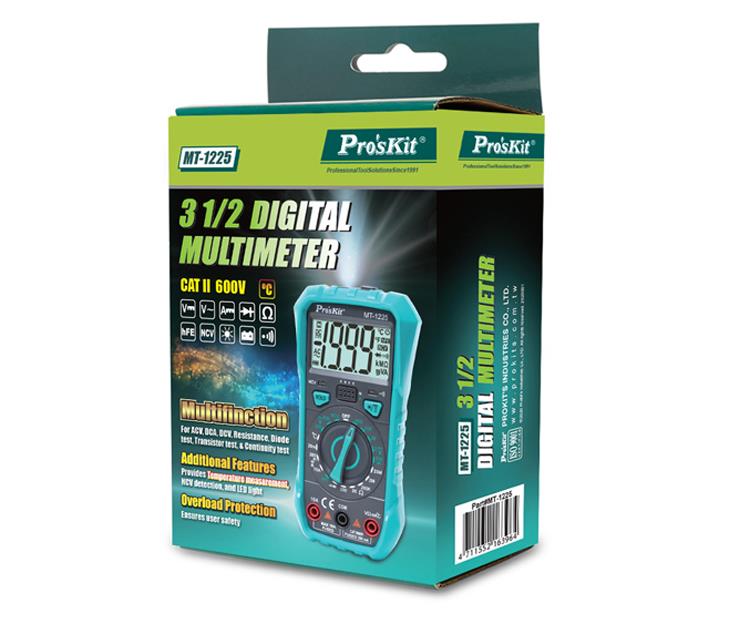

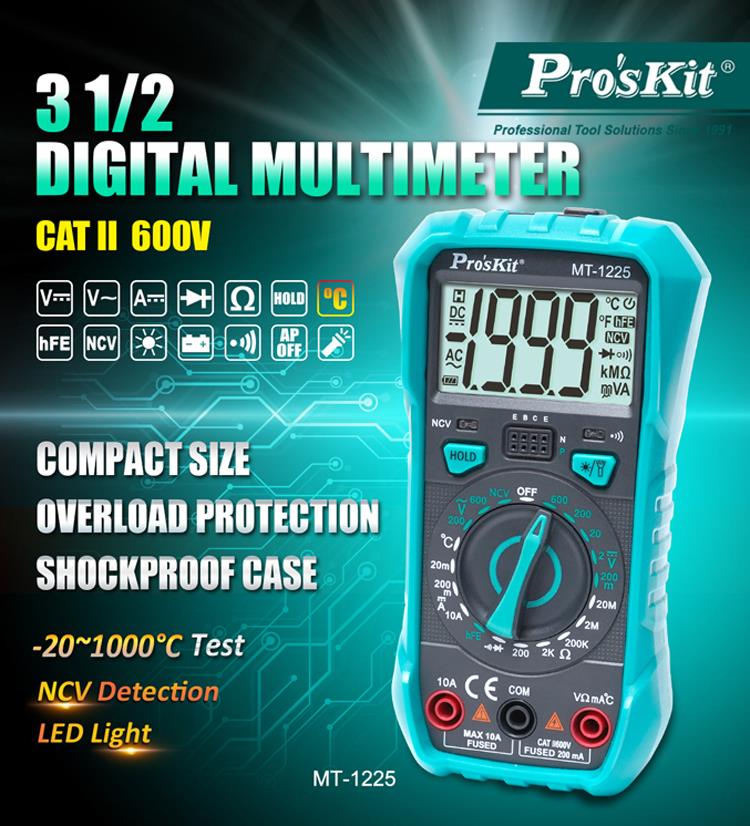

MT-1225 – THE VERSATILE DIGITAL MULTIMETER: Designed to troubleshoot a variety of automotive and household electrical circuit problem safely and accurately. The overload protection secures the meter’s lifespan and user’s safety as well!

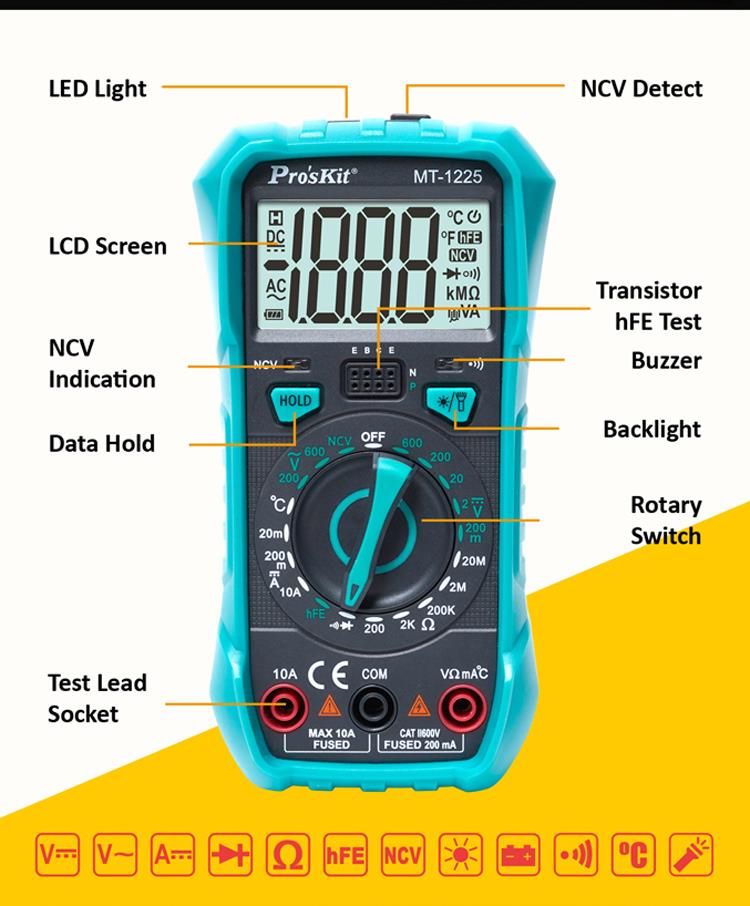

Compact but Multifinction
For ACV, DCA, DCV, Resistance, Diode test, Triode test, and Continuity test
Additional Functions
Provides Temperature measurement, NCV detection, and LED light
Overload Protection
Ensures user safety
| Item# | MT-1225 3-1/2 Digital Multimeter |
| Auto/Manual Range | Manual Range |
| LCD Display | 3 1/2 1999 Counts |
| DCV | 200mV/2V/20V/200V ±（0.5% +5d）
600V±（0.8% +5d） |
| ACV | 200V±(1.0%+10d) / 600V ±(1.2%+10d) |
| DCA | 20mA/200mA ±（1.0% +5 d） , 10A±（3.0% +10d） |
| ResistanceΩ | 200Ω/2K/200k/2MΩ ±（1% +3d）,20mΩ ±（1.5% +3d） |
| Temperature test | -20℃~1000℃±（1% +3d） |
| Continuity Buzzer | Y |
| Diode Test | Y |
| Transistor Test | Y |
| NCV Detection | Y |
| Data Hold | Y |
| LED Light | Y |
| LCD Backlight | Y |
| Low Battery Indication | Y |
| Accessories | Test lead, K-Type thermocouple, Manual |
| Power | 1.5V AAA x 3pcs (Not Included) |
| Dimension | 148mm x 79mm x 48mm |
| Weight | 210g(without battery) |
