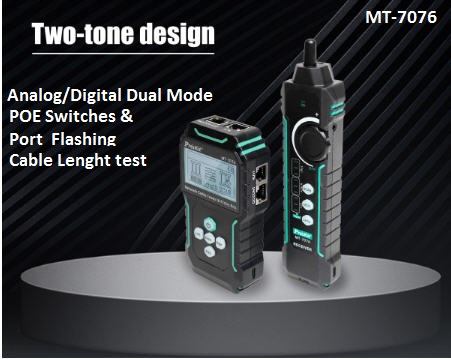

The Pro’sKit MT-7076 is a versatile network cable tester and probe kit designed for professionals and enthusiasts alike. It provides comprehensive testing capabilities for RJ45 Ethernet cables, including cable length measurement, wire mapping, Power over Ethernet (PoE) detection, port flashing, and efficient cable tracing. With its LCD display and dual-mode hunting functionality, it simplifies network troubleshooting and installation tasks.

Transmitter Unit (Left)

• LCD Display: Shows test results, modes, and battery status.
• Flash/PoE/Length RJ45 SCAN Port: Main RJ45 port for various tests.
• RJ11 SCAN Port: For telephone cable scanning.
• QC/CONT Port: For quality control and continuity testing.
• Power Button: Turns the unit on/off.
• Left/Up, Enter, Right/Down, ESC Buttons: Navigation and selection controls.
• Type-C Port: For charging the internal Li-ion battery.

Receiver Unit (Right)

• Probe: Detects signals from the Transmitter.
• Lamp: Built-in LED light for illuminating dark work areas.
• Power Status Indicator: Shows battery level.
• Earphone Jack: For connecting earphones for clearer signal detection.
• Sensitivity Adjustment Knob: Adjusts the receiving sensitivity (OFF, Low, Middle, High).
• SCAN Mode Switch Button: Toggles between analog and digital scanning modes.
• NCV Button: Non-Contact Voltage detection.
• Lamp Button: Turns the LED lamp on/off.
• Type-C Port: For charging the internal Li-ion battery.
• RJ45 CONT Port: For continuity testing with the Transmitter.
